Get to Know Our Models
The Back Dragger comes in many variations. The 3 major models are the M-46, the M-45, and the M-42, but each can be designed in multiple different ways depending on your needs. Click an option above or scroll down to learn more about our models.
M-46 EW
(Electric Winch Model)
This design uses a winch to raise and lower your 3-point implements. The M-46 models are the most lightweight units we offer. The M-46 EW comes in two variations, one meant for side-by-sides and one that uses a self-contained battery meant for trucks, jeeps, and other vehicles. (See Below)
Note: The M-46 EW models do not apply down-pressure but instead rely on the weight of the implement.
M-46 EW-1
The M-46 EW-1 is meant for UTVs/side-by-sides. This model wires to the vehicle to get its power. No battery unit required.
M-46 EW-2
The M-46 EW-2 uses a self-contained battery unit to give your device power. Perfect for vehicles like trucks and jeeps.
*In this photo a wiring kit is connected to the truck as well, but this is not necessary. Adding this would allow for continuous use of your Back Dragger without having to recharge the battery.
M-46 DA
(Double Acting RAM Model)
This model uses a hydraulic RAM to power up and power down your device. It creates down-pressure when using implements and attachments.

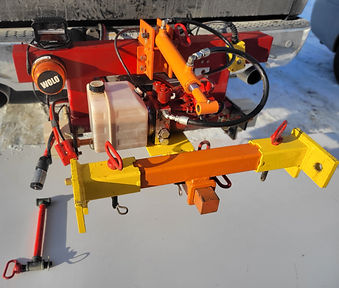

Shown here is the M-46 DA attached to a scraper blade. The hydraulic mechanism is great for lowering, raising, and giving down pressure to your 3-point implement.
M-45 EW
(Electric Winch Model)
The M-45 EW is similar to the M-46 EW in that it uses a winch to raise/lower your 3-point implement. The difference with M-45 models is the addition of a headgear frame. This now gives you different mounting options for your winch and the ability to add accessories to your Back Dragger. The low-profile headgear frame fits below the bed of a truck, allowing you to open and close your tailgate while the unit is on.
*Light bar, reverse lights, and jacks sold separately. The light bar can also be installed on the front of the headgear frame so that you can still open your tailgate.
​
M-45 DA
(Double Acting RAM Model)
This M-45 DA is similar to the M-46 DA in that it uses a hydraulic RAM unit. With M-45 models, you now have the addition of a headgear frame. You also have different mounting options for your RAM and power unit. See Below.
M-45 DA-1
M-45 DA-2
The M-45 DA-1 has the hydraulic power unit placed on top of the headgear frame and the RAM on the bottom.
The M-45 DA-2 has the RAM placed on top of the headgear frame and the power unit on the bottom.
3-POINT IMPLEMENTS SOLD
SEPARATELY
M-46 Model frames can also be upgraded to either the
M-45 or M-42 by installing the lower attachment frame and upper headgear frame to the M-46 attachment bar.
M-42 EW/DA
The M-42 is the largest and most equipped out of all of our models. It has a high-profile headgear frame. It can come with a winch, a hydraulic unit + RAM, or both. The M-42 can be customized in many ways. You could add two different size winches, add extra vehicle lighting, or many more options. This model is heavy duty, meant for trucks and military vehicles like Humvees. M-42 models come with jacks due to its weight and size.
Military Models
